Sonel AHV-3 Adapter
£330.00

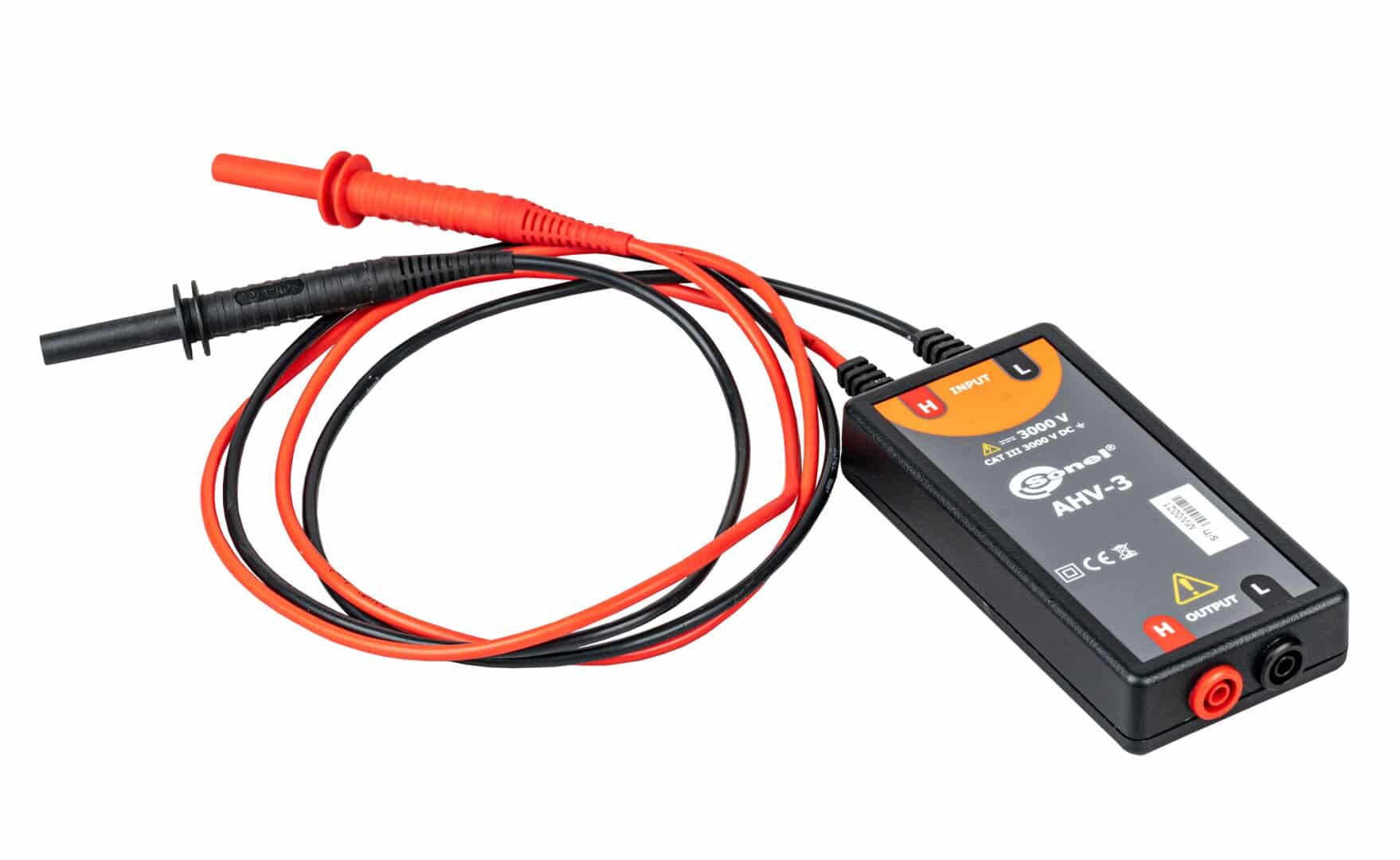

The Sonel AHV-3 voltage adapter enables the measurement of high voltage in accordance with CAT III 3000 V DC
Standard accessories
The standard set of equipment supplied by the manufacturer includes:
- 2x pin probe 3 kV – WASONBL3KV,
- Test leads set for CMM/CMP – WAPRZCMX1,
- M-13 carrying case – WAFUTM13,
- Declaration of verification
Description
The Sonel AHV-3 voltage adapter enables the measurement of high voltage in accordance with CAT III 3000 V DC when used with a compatible meter such as the Sonel CMP-1015-PV photovoltaic clampmeter or compatible Sonel CMM multimeter.
Use the AHV-3 to test up to 3kV on solar photovoltaic strings with Sonel CMP-1015-PV Clampmeter
The Sonel clampmeter is dedicated to measuring AC and DC current and voltage in solar photovoltaic installations. With the addition of the Sonel AHV-3 high voltage adapter the Sonel CMP-1015-PV clampmeter can measure up to 3000VDC on solar strings. In addition to this measurement, the Sonel CMP-1015-PV can act as a datalogger and recorder with graphs. Working in direct sunlight is also possible thanks to the clampmeters high brightness display. The Sonel CMP-1015-PV clampmeter also provides precise measurements downstream of frequency converters thanks to its VFD function.
For more information visit the Sonel product page
AHV-3 Adapter | Features:
Basic Technical Data
a) measuring range ……………………………………………..0…3000 V DC
b) ratio (INPUT / OUTPUT) …………………………………………10 V / 1 V
c) przelicznik wyniku
? CMP-1015-PV meter (HV DC measurement) ……………. 1 x m.v.
? master meter (V DC measurement) ……………………….. 10 x m.v.
d) accuracy of CMP-1015-PV (HV DC measurement)
? U ? 1000 V DC …………………………………………………..inspecified
? 1000 V DC < U ? 3000 V DC ……………..±(0,5% m.v. + 5 digits)
e) accuracy of master meter (V DC measurement)
? 0 V DC…3000 V DC………………. as for V DC in range of 0…300 V
f) input resistance with master meter connected ……………… 50 M?
m.v. – measured value
Other technical data
a) insulation type acc. to EN 61010-1 ……………………………… double
b) measurement cat. acc. to EN IEC 61010-2-030 …… III 3000 V DC
c) protection class acc. to EN 60529………………………………….. IP54
d) test leads length …………………………………………………………..1.2 m
e) dimensions ………………………………………………. 130 x 65 x 26 mm
f) weight (with cables)………………………………………………………275 g
g) operating temperature ……………………………………….-5°C…+40°C
h) storage temperature ………………………………………..-20°C…+60°C
i) humidity ………………………………………………………………20%…90%
j) reference humidity………………………………………………………….30%
SKU: WAADAAHV3
Download SONEL AHV-3 Datasheet HERE
