SL500 – Expert Solar PV Test Kit
£449.00

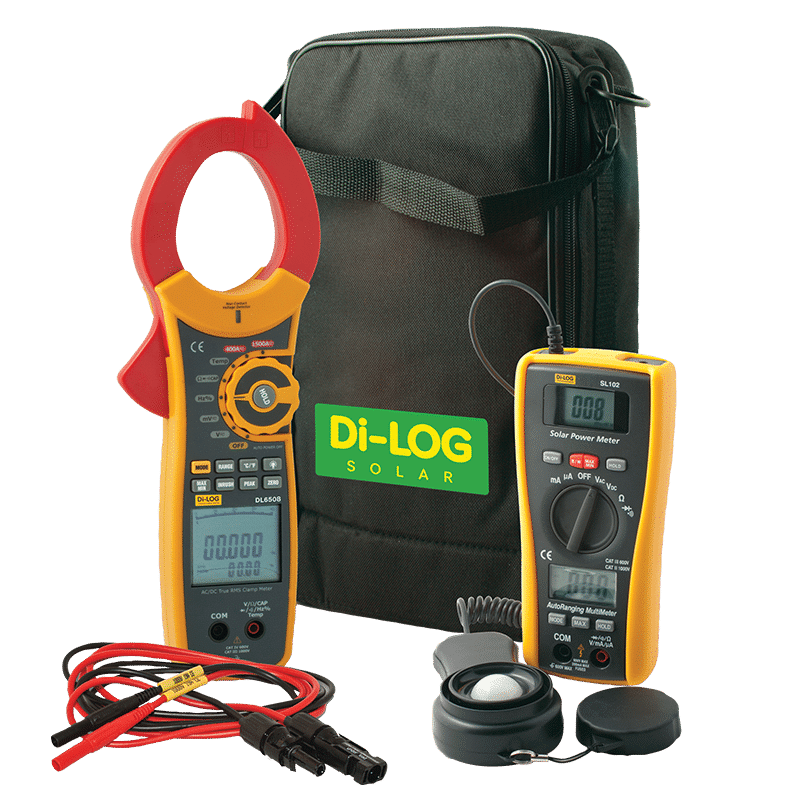

The SL500 Solar PV test kit is an expert kit designed specifically for commercial Solar PV system installations, complete with power measurement capabilities. The kit comes with the SL102 Irradiance Meter and the DL6508 1500A AC/DC Current Clamp, including a 1000V DC VOC measurement, all neatly packaged in a soft carry case.
Description
SL500 – Expert Solar PV Test Kit
The SL102 features a Multimeter-like design that enables safe and accurate measurements, even when working at heights. Its dual display allows for simultaneous recording of the Irradiance level and Voltage output (VOC) with the panel connected in situ via the SLLSC4 4mm MC4 lead set provided. This feature-packed kit is a must-have for commercial Solar PV system installations.
Download the SL500 – Expert Solar PV Test Kit Manual here
Download the SL102 – Solar PV Meter Specifications Sheet here
SL102 – Features:
Solar Irradiance measurement to 1999 W/m2 or 634BTU/ft2*h
Dual Display for simultaneous Irradiance and Voltage (VOC) measurement for in situ testing
Min/Max recording function
Auto Hold
AC/DC Voltage to 600V
Audible Continuity and Diode test
AC/DC current to 200mA (Not to be used for PSC)
SLLSC4 – 4mm MC4 Red/Black lead set for VOC measurement
Includes a Carry Case
DL6508 – Features:
“Replacement unit coming soon”
Power Measurement to 900.0kW
1500A AC/DC Current
1000V DC/750V AC
Min/Max & Hold
Inrush Current
Lead Set
40000 Count Display
Auto Power Off
Soft Carry Case
SL500 – Features:
Supplies with Type 4 T-Connectors for power measurement
