Seaward PV1525
£2,519.00
IN STOCK!Â
Built around an updated user interface, the PV:1525 delivers a straightforward testing experience while introducing modern features to make managing results easier. Test data can be tagged with installation-specific information, helping users keep results organised and linked to the relevant system.
Bluetooth connectivity also allows test results to be transferred to a mobile app for convenient review and synchronisation with compatible software. This provides a simple way to manage test data and keep the instrument up to date with the latest features.
The PV:1525 performs Ground Continuity, Insulation Resistance, Open Circuit Voltage and Short Circuit Current testing.
The Seaward PV:1525 provides installers and O&M engineers with a comprehensive solution for testing and assessing PV installations up to 1500V DC and 25A. Designed for both residential and commercial systems, it combines essential electrical safety testing with performance measurements in one practical instrument.
Description
Seaward PV1525
The Seaward PV1525 is designed for installers and O&M engineers to allow electrical safety testing and performance measures in PV systems up to 1500VDC and 25A,ideal for residential and commercial level installations
With a new innovative user interface, the PV:1525 series retains the ease of use from the previous generation while adding additional features fit for a modern test instrument. Results can be tagged with information relating to the installation for ease of data management. With Bluetooth capabilities, test results can be easily transferred to a mobile app for review and further sync with software, ensuring your device is always up to date with the latest features.
Performs Ground Continuity, Insulation Resistance, Open Circuit Voltage, Short Circuit Current.
Results can be tagged with information relating to the installation for ease of data management. With Bluetooth capabilities, test results can be easily transferred to a mobile app for review and further sync with software, ensuring your device is always up to date with the latest features.
This series boasts new and improved capabilities that make PV testing easy, saving you time in the field so you can focus on maintaining the functionality of your PV installations.
- Increased voltage and current measuring capability 1500V 25 Amp
- Insulation resistance is increased to 1500V
- Enhanced User Interface with an accessible full colour LCD display
- PV:1525-IV can instantly display the IV curve
- Can send results to the cloud via a mobile device and app
- Receives Over The Air firmware updates, via the app.

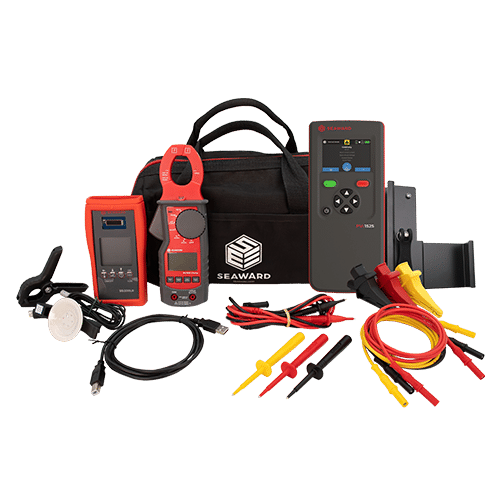

Includes:Â SS200R Irradiance Meter
- Â Compliant with IEC 62446
- Â Measures solar irradiance (via reference cell)
- Â Built-in compass
- Â Roof pitch angle measurement
- Â Ambient temperature reading
- Â PV module temperature monitoring
- Â Datalogging for test records
- SolarLinkâ„¢ wireless connectivity for seamless integration
and the PV:1500 Clamp meter:
- Voltage Measurement
- AC: 1mV to 1000V
- DC: 1mV to 1500V (accurate to ±1-1.5%)
- Resistance, Continuity & Diode
- Resistance: Up to 40 M?
- Continuity: Buzzer sounds under 30?
- Diode test: Up to 1.5V
- Frequency
- Measures up to 10 MHz
- Current Measurement
- Clamp (AC): 0.1 to 400A
- Jack (AC/DC): 0.1 ?A to 400 ?A
- Capacitance
- 10 nF to 100 ?F
- Accuracy around ±10% (typical)
- Low Pass Filter (LPF)
- 1 kHz cut off
Download the Seaward PV1525 Spec Sheet here
