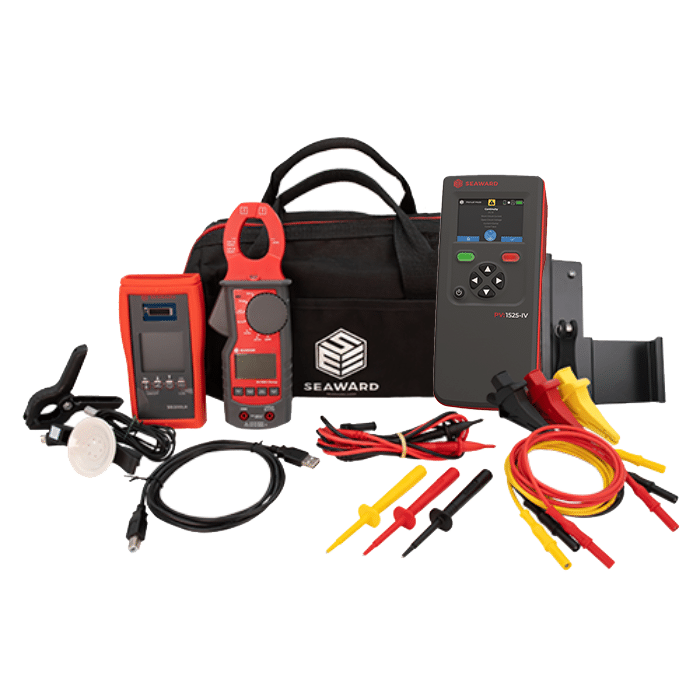

Seaward PV:1525-IV
£4,094.00
IN STOCK!Â
The Seaward PV:1525-IV is a versatile testing solution for installers and O&M engineers working on photovoltaic systems up to 1500V DC and 25A. Suitable for both residential and commercial installations, it combines essential electrical safety testing with key PV performance measurements in a single, practical instrument.
An intuitive user interface makes testing simple, while modern features help streamline the way results are recorded and managed. Test results can be tagged with installation-specific information, making it easier to organise data and associate measurements with the relevant PV system.
Built-in Bluetooth connectivity allows test results to be transferred to a mobile app for convenient review and synchronisation with compatible software. This provides an efficient way to manage stored test data while also helping keep the instrument updated with the latest features.
The PV:1525-IV carries out Ground Continuity, Insulation Resistance, Open Circuit Voltage and Short Circuit Current testing, providing the core measurements required for assessing the electrical safety and performance of PV installations.
Description
Seaward PV:1525-IV
The Seaward PV:1525-IV is designed for installers and O&M engineers to allow electrical safety testing and performance measures in PV systems up to 1500VDC and 25A,ideal for residential and commercial level installations
With a new innovative user interface, the PV:1525 series retains the ease of use from the previous generation while adding additional features fit for a modern test instrument. Results can be tagged with information relating to the installation for ease of data management. With Bluetooth capabilities, test results can be easily transferred to a mobile app for review and further sync with software, ensuring your device is always up to date with the latest features.
Performs Ground Continuity, Insulation Resistance, Open Circuit Voltage, Short Circuit Current.
Installers need tools that match the realities of site work. With the PV:1525 Series, the focus has been on simplifying PV commissioning, reducing the number of tools required, and giving installers confidence that testing is complete, compliant and ready for handover.
Modern PV commissioning places increasing demands on installers, from tighter schedules to heightened safety considerations when working on live systems. The PV:1525 Series has been developed to support a clear, logical testing workflow, helping to reduce the risk of errors while keeping processes simple and repeatable across installations.
A key advantage is the integrated Dynamic Surge Suppression System, which actively manages inrush current during short-circuit testing. High inrush current can place stress on both equipment and installations, but the PV:1525 Series monitors and suppresses it effectively. This allows installers to test with confidence, even on high-capacity PV arrays, without risking damage to the instrument. Integrated Bluetooth connectivity enables real-time documentation of test results on site, while over-the-air updates keep the instrument current without downtime, protecting long-term investment.
Results for the Seaward PV:1525-IV can be tagged with information relating to the installation for ease of data management. With Bluetooth capabilities, test results can be easily transferred to a mobile app for review and further sync with software, ensuring your device is always up to date with the latest features.
This series boasts new and improved capabilities that make PV testing easy, saving you time in the field so you can focus on maintaining the functionality of your PV installations.
- Increased voltage and current measuring capability 1500V 25 Amp
- Insulation resistance is increased to 1500V
- Enhanced User Interface with an accessible full colour LCD display
- PV:1525-IV can instantly display the IV curve
- Can send results to the cloud via a mobile device and app
- Receives Over The Air firmware updates, via the app.
Includes:Â SS200R Irradiance Meter
- Â Compliant with IEC 62446
- Â Measures solar irradiance (via reference cell)
- Â Built-in compass
- Â Roof pitch angle measurement
- Â Ambient temperature reading
- Â PV module temperature monitoring
- Â Datalogging for test records
- SolarLinkâ„¢ wireless connectivity for seamless integration
and the PV:1500 Clamp meter:
- Voltage Measurement
- AC: 1mV to 1000V
- DC: 1mV to 1500V (accurate to ±1-1.5%)
- Resistance, Continuity & Diode
- Resistance: Up to 40 M?
- Continuity: Buzzer sounds under 30?
- Diode test: Up to 1.5V
- Frequency
- Measures up to 10 MHz
- Current Measurement
- Clamp (AC): 0.1 to 400A
- Jack (AC/DC): 0.1 ?A to 400 ?A
- Capacitance
- 10 nF to 100 ?F
- Accuracy around ±10% (typical)
- Low Pass Filter (LPF)
- 1 kHz cut off
Download the Seaward PV:1525-IV Data Sheet here
Download the Seaward PV:1525-IV Spec Sheet here
