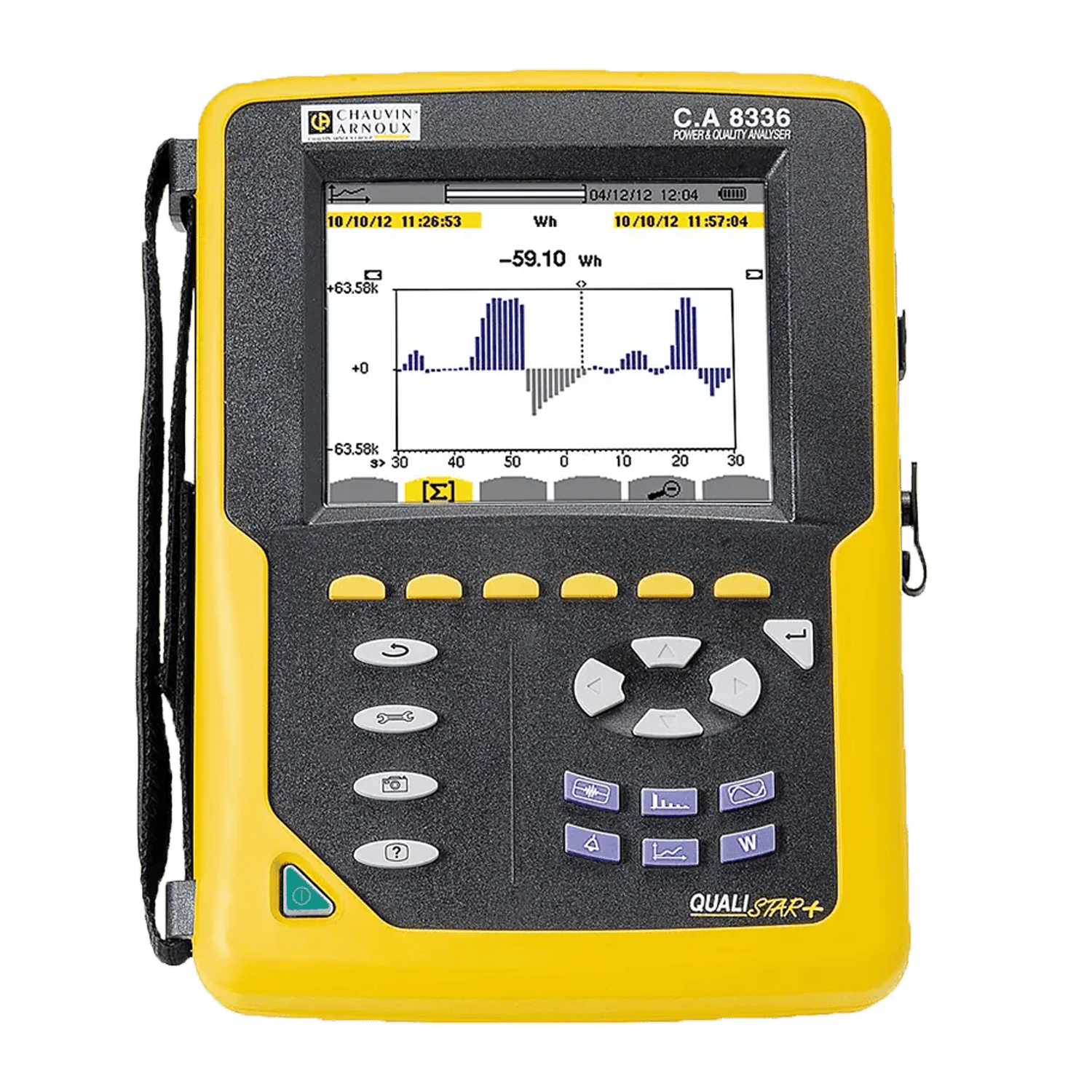

Qualistar CA8336
£5,054.00
The Qualistar+ CA8336 is designed for use by maintenance and testing teams operating in industrial or administrative structures. Its primary function is to provide a quick overview of the fundamental characteristics that define the quality of the electrical network. The device’s various features make it an excellent preventive and corrective maintenance tool. Furthermore, it is capable of conducting a comprehensive energy audit of an entire installation.
Description
The Qualistar+ Is Specially Designed For Work In The Field
For sizing installations or troubleshooting switching faults, the C.A 8336 is equipped with Inrush and TrueInrush functions.
Easy to handle and particularly compact, this instrument also offers a large number of calculated values and several processing functions. The C.A 8336 is equipped with 4 voltage measurement channels and 4 current measurement channels. The C.A 8336 captures and records all the parameters, transients, alarms and waveforms simultaneously.
When current sensors are connected to the C.A 8336, it recognizes them automatically. It also offers the possibility of mixing different types of current sensors and configuration of the ratios allows direct reading of the measurements.
Specially designed for work in the field:
- Direct access to the main functions (configuration, etc.)
- Direct access to the measurements (harmonics, flicker, etc.)
- Voltage/current inputs equipped with colour-coded inserts
- Large colour TFT screen for easy reading
- Battery life: 13 hrs
Download / View the Qualistar CA8336 spec sheet here
- The multiple functions of the Qualistar+ C.A 8336 make it a versatile instrument. It is suitable for applications up to 1,000 V in CAT III and 600 V in CAT IV.
Specially Designed For Work In The Field
