Di-LOG DL9130EVPVKIT – The Complete EV PV Testing Kit
£999.00

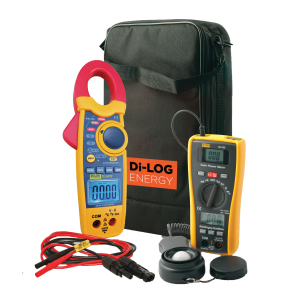

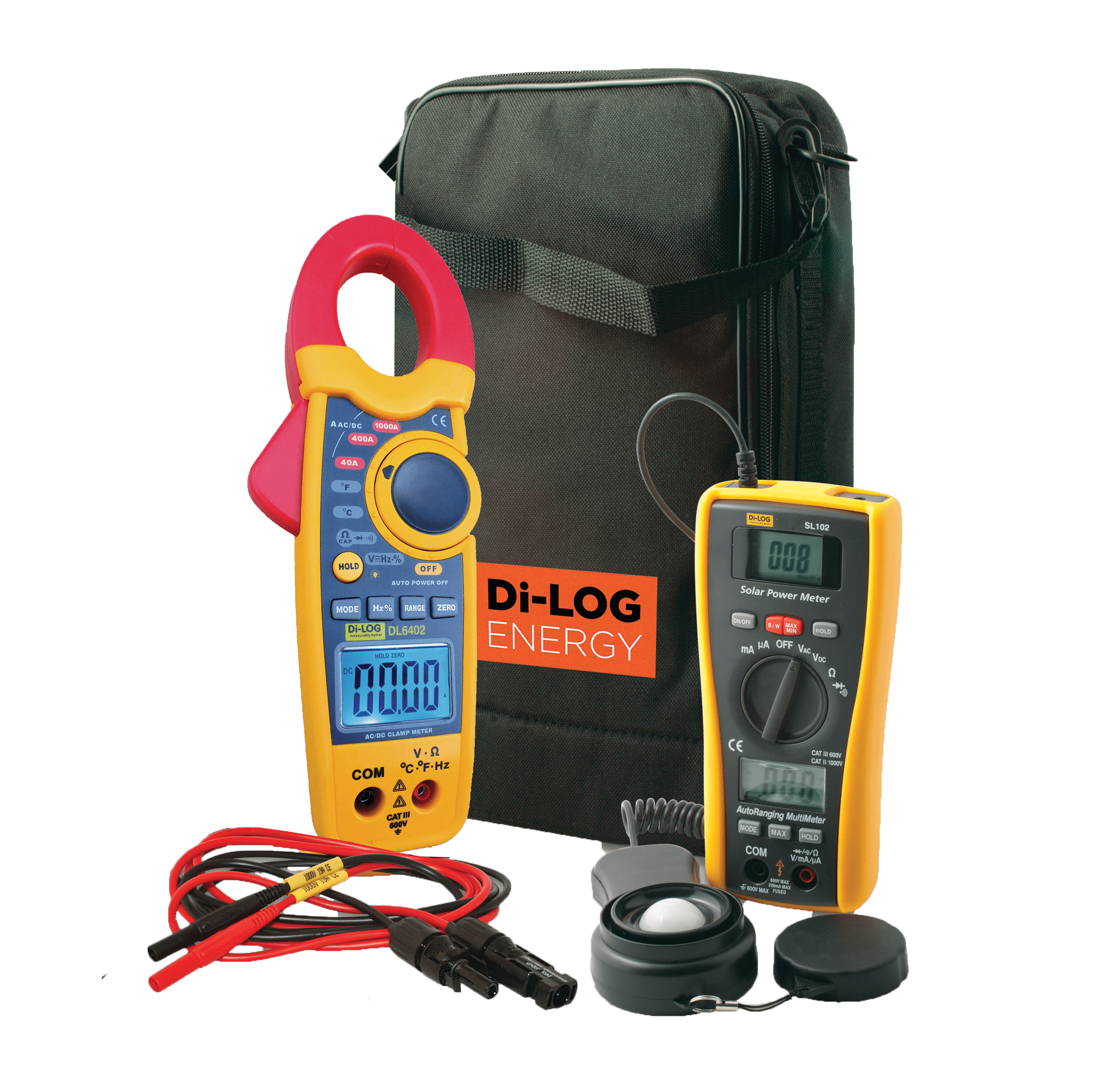

Limited Offer! The DL9130EVPVKIT has been designed specifically for service engineers who offer EV & PV installation as part of their electrical installation portfolio. The kit includes Di-LOG’s latest EV-capable MFT along with the DLEV1 EVSE Charge Station Adaptor and SL300 Solar Test Kit
DL9130EV has many new and exciting features critical to the safe verification of EVSECharge Station Installation including 6mA pure DC test for RDC-DD verification and a full EV testing sequence for verifying the DC protection provided by the EV charger, along with the Type A RCD protection.
A totally new feature added specifically to the DL9130EV is Rmax, this brand-new concept will automatically capture the maximum R1+R2 continuity test reading registering the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
Description
18th Edition Complete EV PV Kit bundle

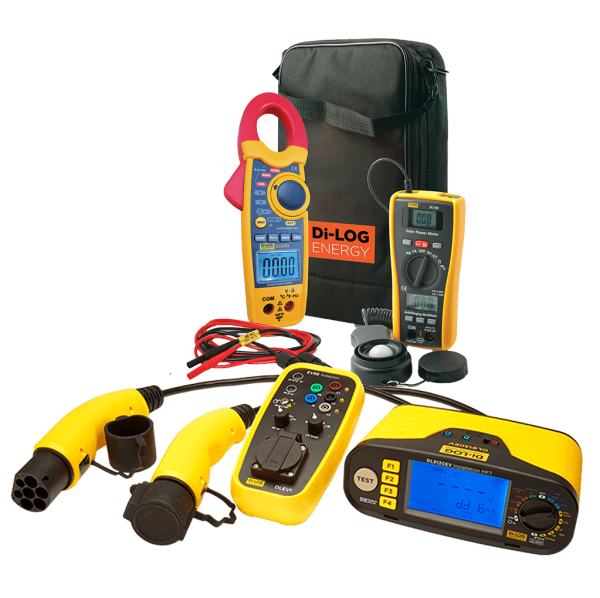

The Di-LOG DL9130EVPVKIT has been explicitly designed for service engineers who offer EV installation as part of their testing portfolio. The DL9130EVPVKIT includes Di-LOG’s latest EV Multifunction Tester, the DL9130EV, along with the DLEV1 EVSE Charge Station Adaptor, if that wasn’t enough, we’ve also got you covered in terms of PV installations too with our state-of-the-arte SL102 Solar Irradiance Meter, and the DL6402 1000Amp AC/DC Clamp Meter.
Brand New Features
A brand-new feature explicitly added to the DL9130EV is Rmax. This brand-new concept will automatically capture the maximum R1+R2/R2 continuity test reading which will register the result on the secondary display for recording once testing is complete. In addition, Di-LOG has added the Zmax feature.
DL9130EVPVKit Key Features
- 6ma RDC-DD Pure DC Test
- Auto EV Test Sequence
- Auto Start Loop & Continuity tests
- Type AC, A, B & Selective (S) RCD Testing
- Rmax & Zmax
- Variable RCD Test
- Colour LCD display with colour change feature
- Proximity Pilot (PP) State 13, 20, 32 & 63A
- Control Pilot (CP) State A, B, C & D
- Error including – PE Pre-Test, CP Error “E” & PE Error
- Type 1 & Type 2 Charge Plugs supplied
- Supplied with a UKAS Calibration Certificate fully traceable to national standards (DL9130EV)
- Electronic overload protection
- Large easy to see backlit displays
- Audible Continuity and Diode test
- DL6402 – 30 mm jaw opening
- 1000 AC/DC Current reading (Dl6402)
- AC/DC voltage up to 600V (Dl6402)
- Temperature thermocouple and K-Type adaptor supplied
- Min/Max recording functions
- SLLSC4 – 4mm MC4 Red/Black lead set for VOC measurement
- All appropriate hard and soft carry cases
The DL9130EVPVKIT MFT Test Kit offers incredible value for a feature-packed MFT meeting all the safety and performance requirements of BS EN 61557.
Specially Designed For Work In The Field
