C-Cubed Vib Meter 330 - Vibration Analyser c/w Trending ability (VibTrend)





       Vib 330 Vibration Analyser























C-Cubed Pocket Vib 330

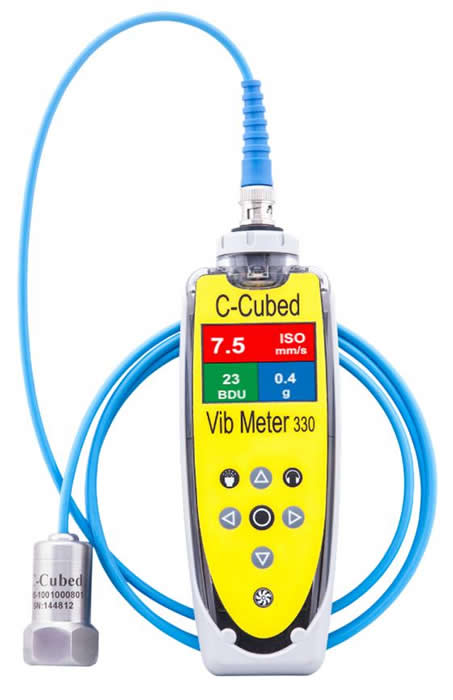

The Vib Meter 330 is a simple to use, low cost vibration meter that analyses and displays vibration signals at the push of a button.

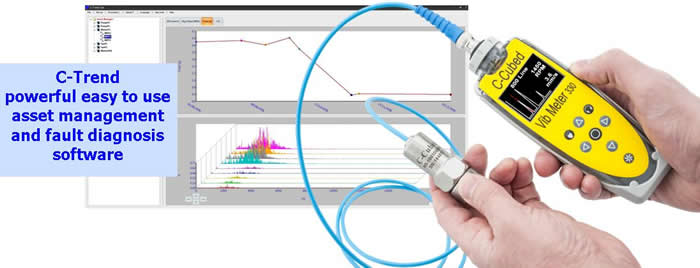

It can also save the readings to VibTrend, the PC based asset management program that shown vibration TRENDS so you can identify any potential breakdowns. VibTrend will alow you to trend analyse upto 10 assets.

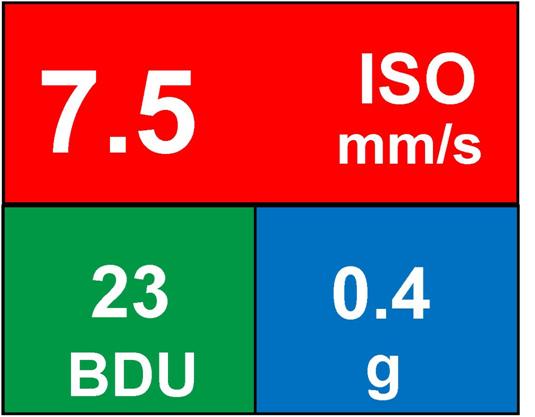

Overall vibration values are displayed with colour coded alarm levels for ISO values, bearing condition

and machine fault diagnosis

 Vib 320 Screen Shot

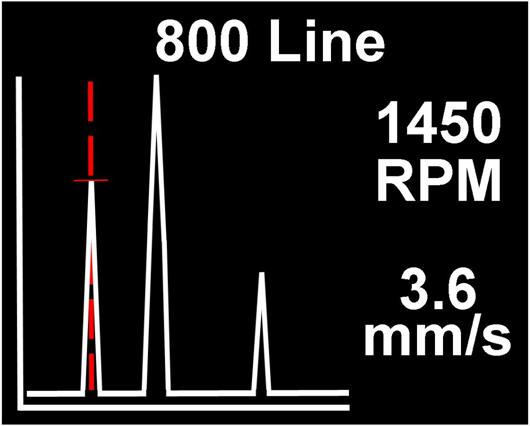

The Vib Meter 330 includes a high resolution zoomable vibration spectrum display with fully dynamic cursor displaying frequency and amplitude values

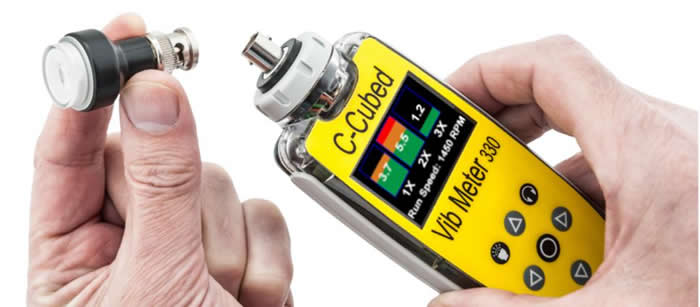

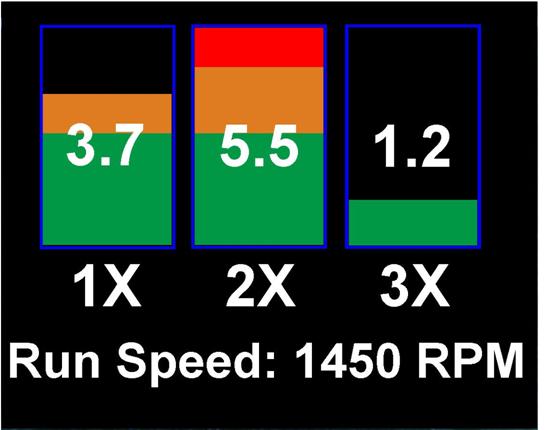

Our colour coded frequency band alarms based on run speed acan be displayed to diagnose machine faults such as unbalance (1x), misaliCt (2x), and looseness (3x).






baInductry approved ear defenders with built-in Bluetooth headphones are also available to let you listen to bearing noise - or even listen to your phone!
The Vib 320 is the latest in a line of easy to use, high specification maintenance products and perfectly complements the c-cubed's family of conditional based monitoring and inspection systems, offering high level functionality and capability at extremely low cost.




Trade Price from £640.00



Part No: VM330 (Vib-Meter 330 - including VibTrend for up to 10 machins) £640.00

Part No: VMTREND (Unrestricting vibration trending software for PC) £350.00



Part No:C312-233 (Accelerometer Magnet) £74.00



Download Specification Sheet





Pocket Vib 330
Frequency Range

2 Hz to 1 kHz (ISO)

2 kHz to 15 kHz (BDU)


Max frequency resolution 1.25 Hz @ 800 lines FFT setting
Displayed Vibration Amplitude Units

Acceleration in g

Velocity in mm/s (or inches/s)

Bearing noise in BDU (bearing damage units)


Displayed Frequency Units Hertz (Hz), RPM or CPM
Imput range +/- 50g
Dynamic range 72db (0.05g resolution)

VA diagnostic bands

(RPM = Run Speed)

Unbalanced 1 x RPM

Alignment 2 x RPM

Looseness 3 x RPM
Audio output for bearing noise Standard Bluetooth headset protocol
Accessories
  • Standard 100mV/g BNC accelerometer
  • Nylon carrying case
Optional Accessories
  • Tacho strobe/flashlight attachment
  • Bluetooth headphones/ear defenders
IP67 Waterproof Water, Sand & Dust
Weight 280g not including magnet
Dimensions 200mm x 60mm x 26mm
Power Source 2 x AA Batteries
